Self-Made Grame Framework

3 min read

Self-Made Grame Framework

Overview

This project is a 2D game framework created based on the C++ language and SDL2 multimedia library. A game made using this framework can be found at Italian Brainrot Survivors.

⚠️ Note: This is not a copy of open-source projects on the internet, but a framework designed and implemented from scratch after considering the required structures.

View Repository

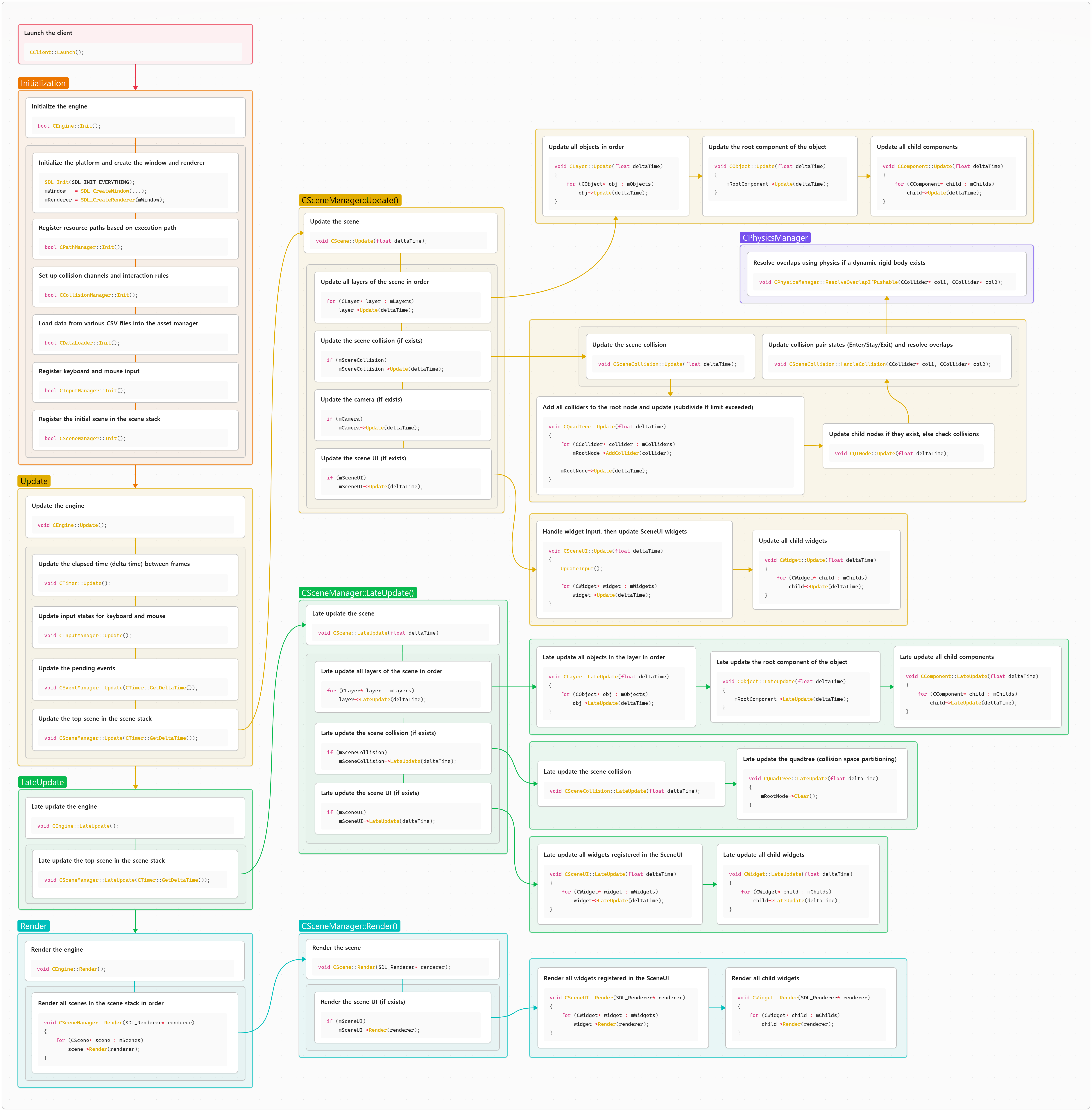

Framework Execution Flow Diagram | Full View

The above image is a simplified design diagram, focused on the core execution flow.

📂 Project Exploration

1. Key Implementations

  1. Asset Manager Memory Optimization Design
    • Prevent memory fragmentation, optimize cache usage
  2. Scene Manager and Resource Optimization Design
    • Stack based scene transition structure
    • Smart pointer based resource management
  3. Scene-Layer-Object-Component Hierarchy
  4. Input Handling System Structure
    • Separated input manager, input components
    • Flexible input handling and scalability
    • Related Component: CInputComponent
  5. Object Visual Composition and Animation Structure
    • Shared textures minimize resource duplication
    • Independent control for each object via cloned animations
    • Related Component: CSpriteComponent, CVFXComponent
  6. Collision and Physics System Structure
    • Spatial partitioning, collision channel based detection
    • Manage collision pairs, handle physical interactions
    • Related Component: CBoxCollider, CCircleCollider, CRigidbody
  7. Widget System Structure
    • Built-in Widget Set
    • Hierarchical UI management
    • Input handling and basic interaction integration
    • Related Component: CWidgetComponent

2. Goals and Directions

Before starting this project, I clearly set the goals and directions that would serve as standards for the entire development process. Based on these, I aimed not only to implement simple functions but also to achieve a framework with structural completeness.

  • Goals:
    1. C++ and Low-Level Technical Skills
      • Memory and Object Lifecycle Management
      • Design from a Cache Optimization Perspective
      • Debugging and Performance Analysis Capabilities
    2. Understanding Commercial Engine Structure
      • Overall Engine Execution Flow
      • Principles of Core Subsystems
      • Hierarchical Systems Interaction
  • Directions:
    1. Consistent and Smooth Structure Design
    2. Proper Optimized Data Structure Choice
    3. Flexible Extensibility and Maintainability

3. Reflections and Challenges

Throughout the development process, I remained faithful to the goals and direction I had set. In order to improve technical completeness, I repeatedly redesigned and reimplemented even functions that were already finished, applying better structures and theoretically more appropriate data structures or flows. These cycles of repeated modification and reimplementation were the result of prioritizing high technical quality, and their traces remain clearly in the Git commit history.

However, this approach led to the problem of exceeding the planned schedule, and the total development period extended to about seven months. Through this, I realized the importance of maintaining a balance between technical obsession and practical judgment, as well as making decisions within a limited development timeframe.

4. Results and Achievements

This project was carried out based on the initial goals of enhancing low-level technical skills, understanding engine architecture, and maintaining consistent design, and it ultimately succeeded in practically achieving these objectives.

All major implemented features were completed through self-designed and optimized processes. In particular, memory pool based object management, resource optimization design, and scene transition and collision optimization structures significantly improved stability and performance.

Through this process, I built not just functional code, but a flexible and extensible game framework reflecting the structural characteristics of commercial game engines. At the same time, I enhanced my C++ low-level optimization experience, comprehensive understanding of engine architecture, and ability to design consistent structures.
